Individual hose record
4I-3823 Hose Repair Specifications
Excavator · Caterpillar · CAT®318C · Boom Assembly
Finished length980 mm
Locate this hose

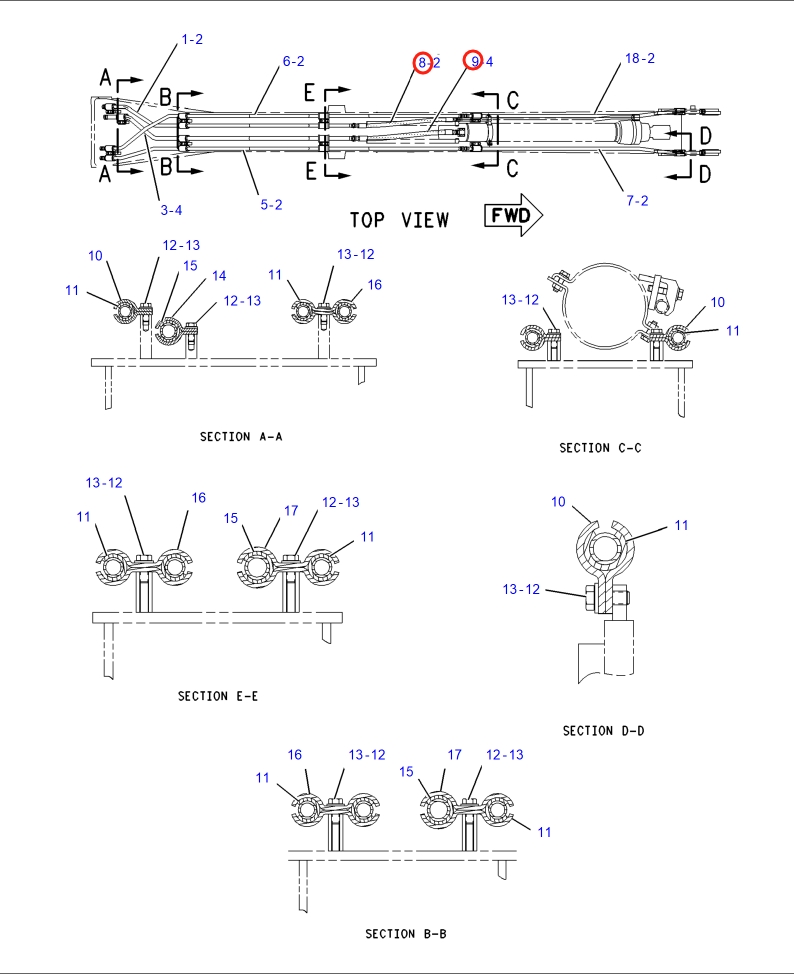

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4I-3823 before removing the hose.
Repair specifications
- Part number
- 4I-3823
- Diagram pipe number
- 9
- Installation route
- Arm cylinder — rightOriginal Chinese: 小臂油缸右
- Hose specification
- DN25;6SH-16;42Mpa
- Finished length
- 980 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 900 mm
- Specification
- DN13;4SP-8;28Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,175 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,200 mm
- Specification
- DN25;6SH-16;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,300 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 950 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 1,100 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 760 mm
- Specification
- DN19;6SH-12;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
