Individual hose record

204-8389 Hose Repair Specifications

Excavator · Caterpillar · CAT®318C · Boom Assembly

Finished length900 mm

Locate this hose

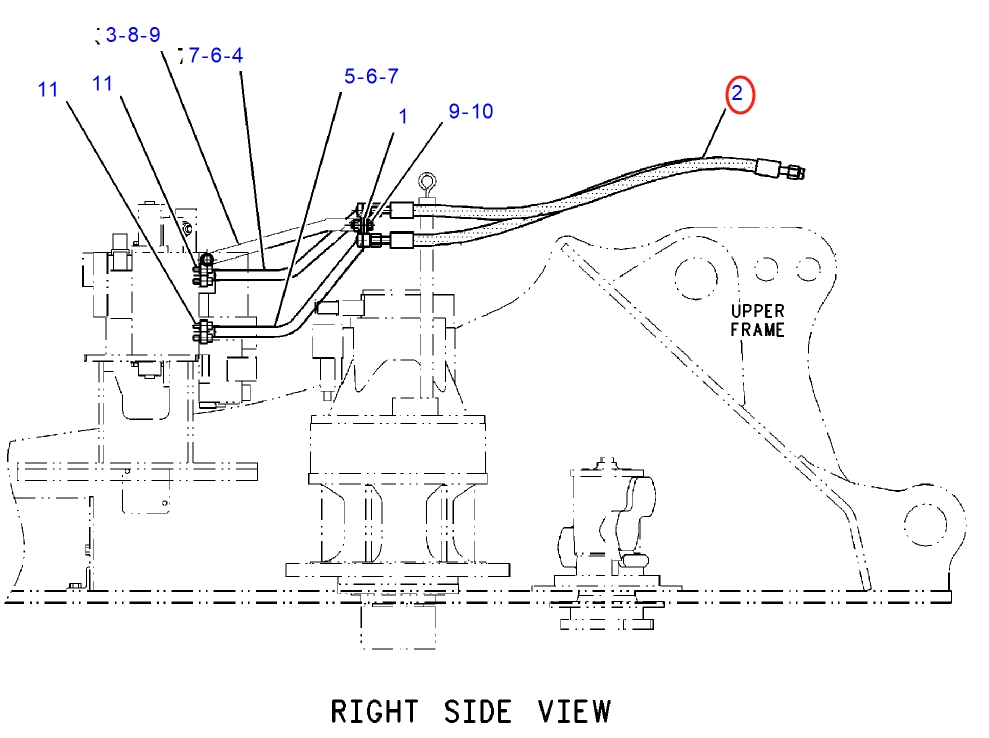

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 204-8389 before removing the hose.

Caterpillar CAT®318C installation diagram showing hydraulic hose 204-8389 at Pipe No. 2 — **Caterpillar CAT®318C**Part 204-8389 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 204-8389
Diagram pipe number: 2
Installation route: 大臂~分配阀前
Hose specification: DN13;4SP-8;28Mpa
Finished length: 900 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 9

4I-3823

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 980 mm
Specification: DN25;6SH-16;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

187-5954

Installation route: 大臂左3/左4

Length: 1,150 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

226-9836

Installation route: 分节油缸~分配阀前

Length: 1,175 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

207-6701

Installation route: 大臂左2

Length: 1,200 mm
Specification: DN25;6SH-16;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 10

207-6651

Installation route: 大臂左1

Length: 1,300 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 8

4I-3820

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 950 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

151-3229

Installation route: 铲斗油缸~接头

Length: 1,100 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 9

207-6562

Installation route: 大臂油缸

Length: 760 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
