Individual hose record
225-7623 Hose Repair Specifications
Excavator · Caterpillar · CAT®312C · Supply and Return Valve
Finished length2,500 mm
Locate this hose

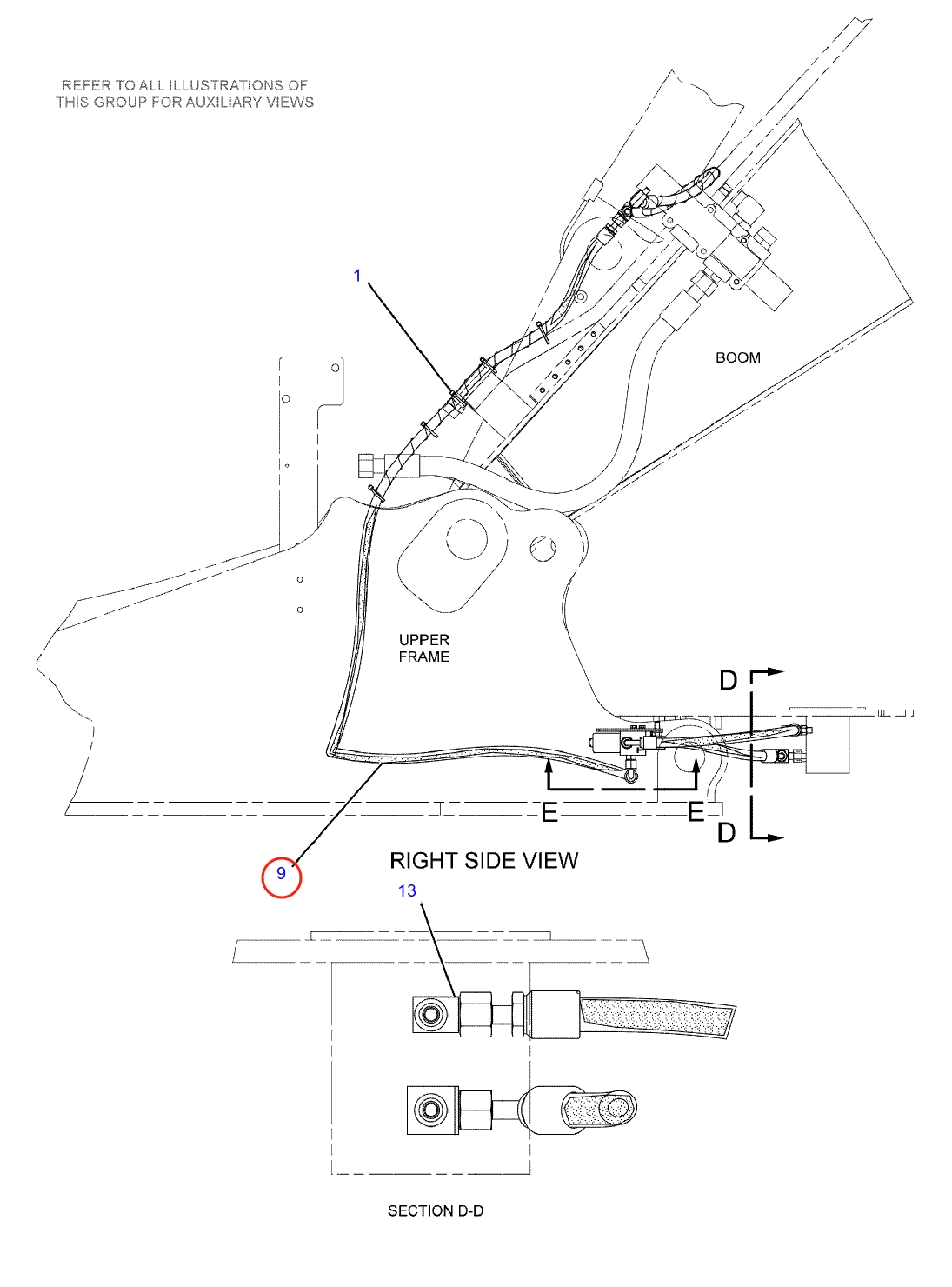

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 225-7623 before removing the hose.
Repair specifications
- Part number
- 225-7623
- Diagram pipe number
- 9
- Installation route
- 进回油阀~过渡接头(大臂上)
- Hose specification
- DN10;1SN-6;15.7Mpa
- Finished length
- 2,500 mm
- Working pressure
- 15.7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
For reference only. Confirm the actual hose before fabrication.
