Individual hose record
376-6356 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F LGC · Solenoid Valve
Finished length2,190 mm
Locate this hose

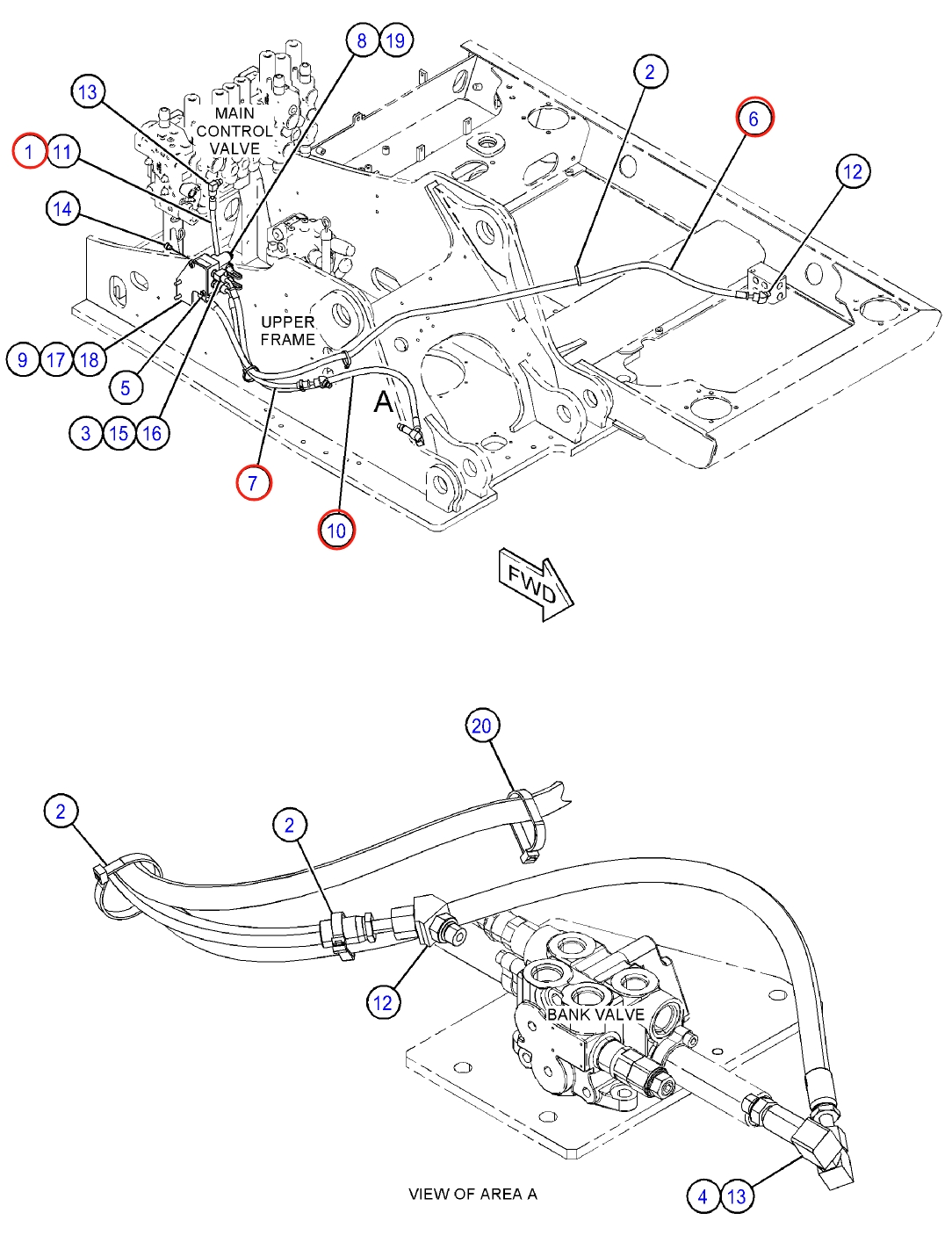

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 376-6356 before removing the hose.
Repair specifications
- Part number
- 376-6356
- Diagram pipe number
- 6
- Installation route
- 电磁阀(分配阀右前)~进回油阀
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 2,190 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
