- Length
- 2,190 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
4I-1031 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F LGC · Solenoid Valve
Finished length500 mm
Locate this hose

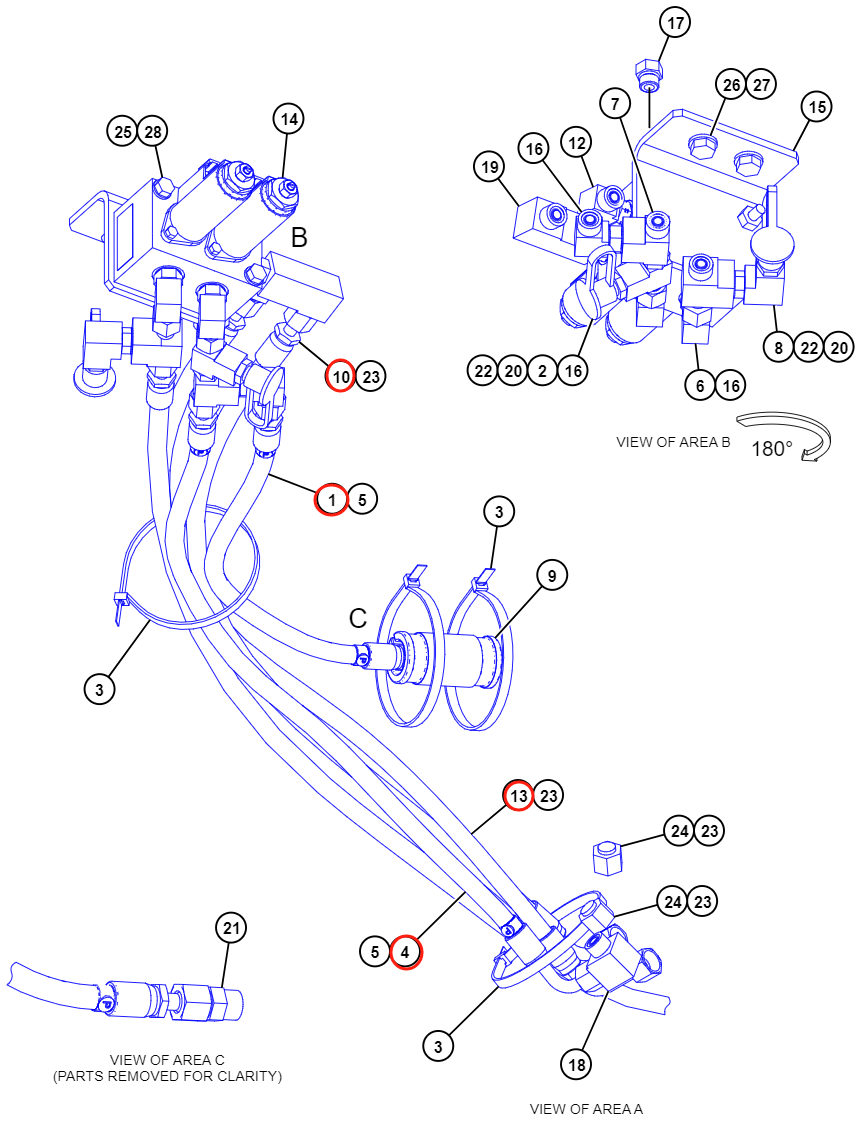

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4I-1031 before removing the hose.
Repair specifications
- Part number
- 4I-1031
- Diagram pipe number
- 1
- Installation route
- 电磁阀(驾驶室)~
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 500 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
