Individual hose record

4I-1037 Hose Repair Specifications

Excavator · Caterpillar · CAT®318C · Control Valve

Finished length1,400 mm

Locate this hose

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4I-1037 before removing the hose.

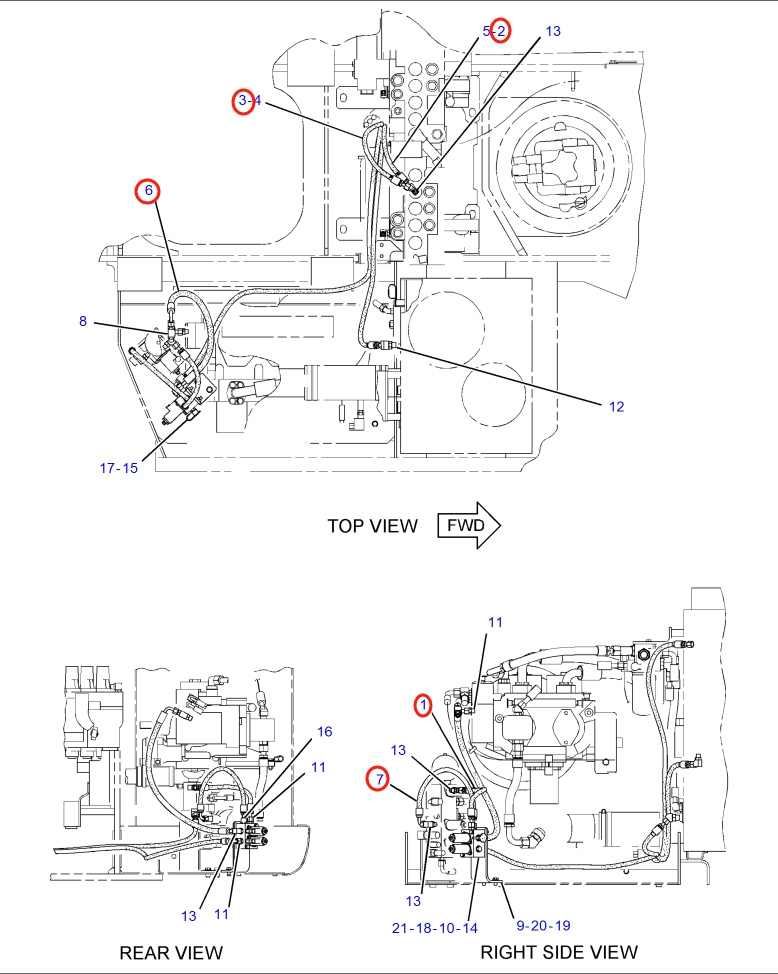

Caterpillar CAT®318C installation diagram showing hydraulic hose 4I-1037 at Pipe No. 2 — **Caterpillar CAT®318C**Part 4I-1037 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4I-1037
Diagram pipe number: 2
Installation route: 分配阀上~
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 1,400 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
