Individual hose record
6C-6464 Hose Repair Specifications
Excavator · Caterpillar · CAT®315-A · Attachments – Lock Valve
Finished length1,300 mm
Locate this hose

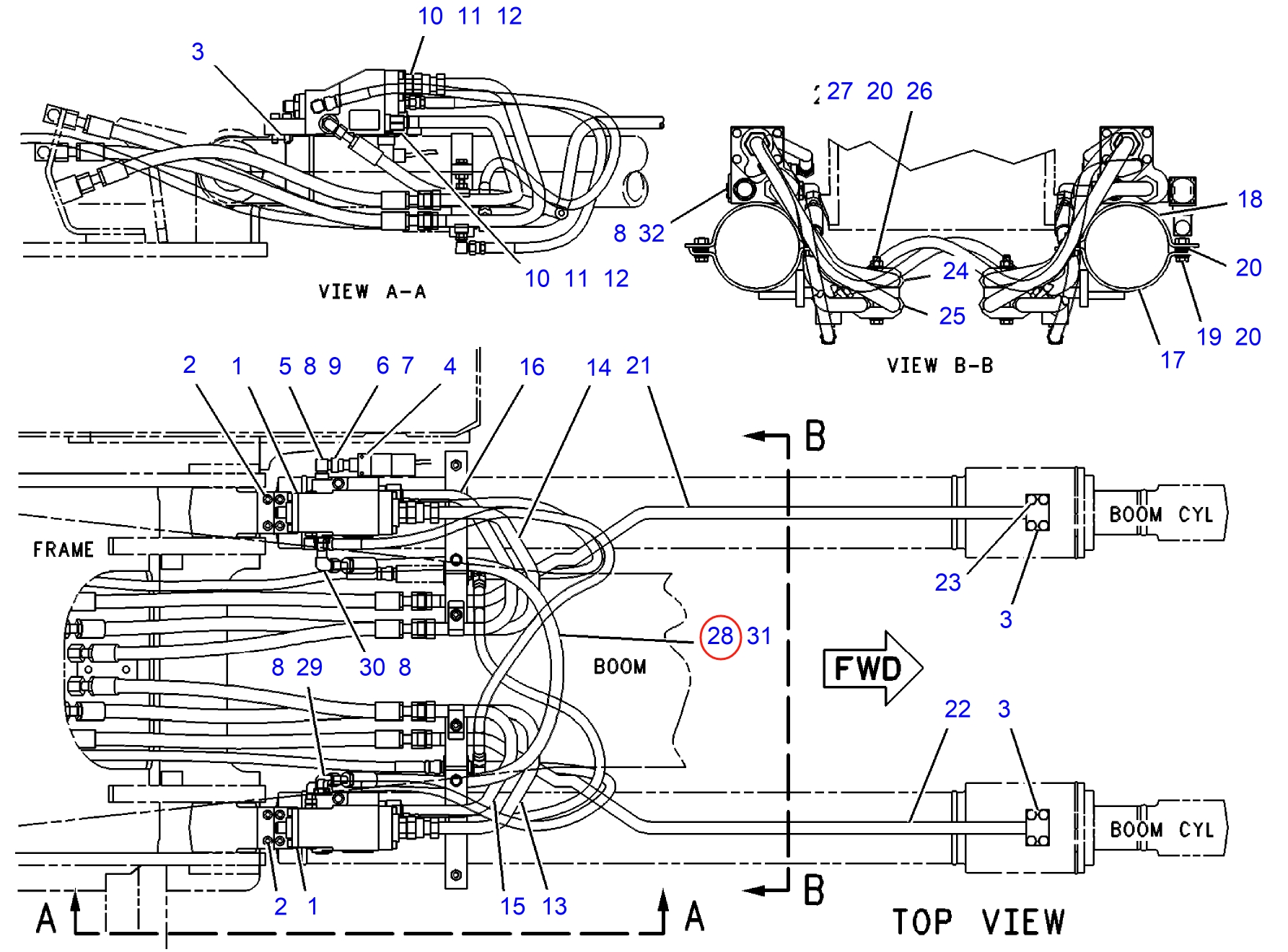

Installation diagram — Pipe No. 28
Locate Pipe No. 28 in the diagram, then confirm part number 6C-6464 before removing the hose.
Repair specifications
- Part number
- 6C-6464
- Diagram pipe number
- 28
- Installation route
- Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Hose specification
- DN10;6SH-6;42Mpa
- Finished length
- 1,300 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
