Individual hose record
452-4986 Hose Repair Specifications
Excavator · Caterpillar · CAT®313F LGC · Hydraulic Pump
Finished length630 mm
Locate this hose

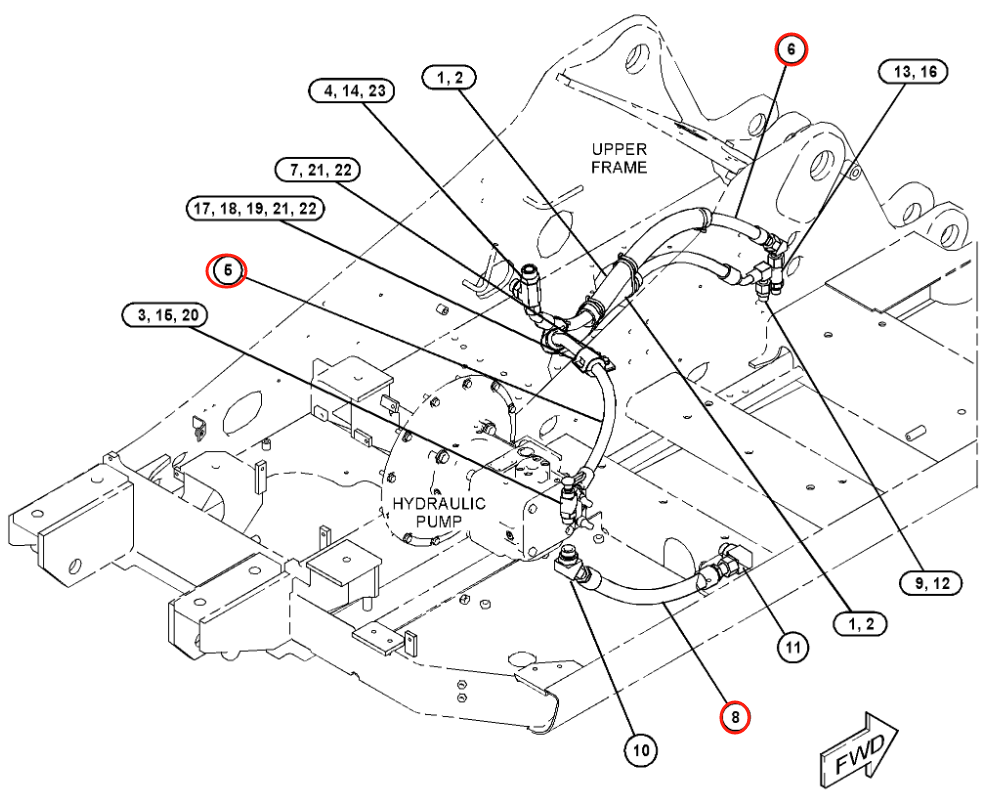

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 452-4986 before removing the hose.
Repair specifications
- Part number
- 452-4986
- Diagram pipe number
- 8
- Installation route
- 液压泵~液压泵吸油铁管
- Hose specification
- DN25;1SN-16;7Mpa
- Finished length
- 630 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
