Individual hose record
5T-4381 Hose Repair Specifications
Excavator · Caterpillar · CAT®307 · Attachments
Finished length2,700 mm
Locate this hose

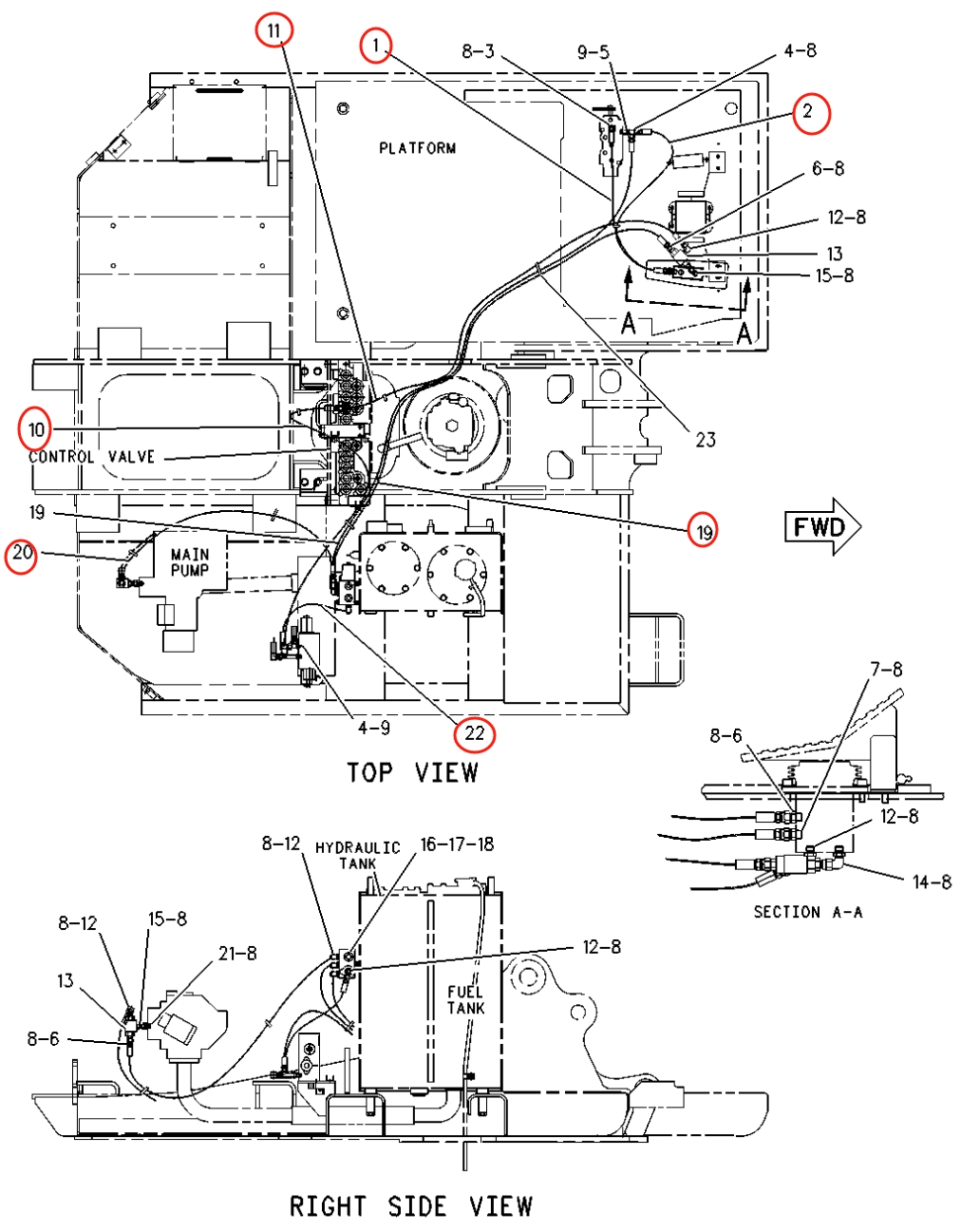

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 5T-4381 before removing the hose.
Repair specifications
- Part number
- 5T-4381
- Diagram pipe number
- 19
- Installation route
- 右踏板~电磁阀(液压油箱后)
- Hose specification
- DN6;1SN-4;19.2Mpa
- Finished length
- 2,700 mm
- Working pressure
- 19.2 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
